22264-BEA-XL-MB1

22264-BEA-XL-MB1

size:320*580*150mm
weight:170.5 kg
Spherical Roller Bearing
A one-year warranty is provided under normal operating conditions.
WhatsApp:+8618753115023
E-mial:info@bearingmotion.com
Send Inquiry
Chat Now
Product Introduction

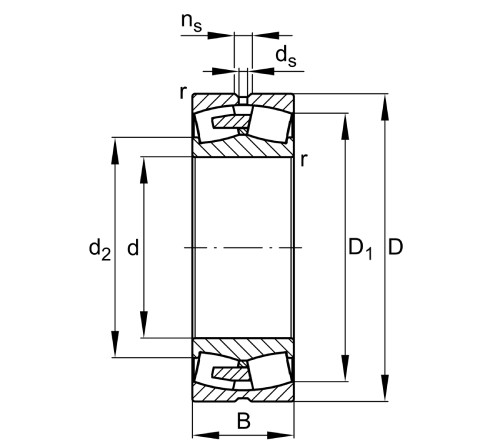

Products Description

d
320 mm
D
580 mm
B
150 mm
Cr
3,550,000 N
C0r
4,700,000 N
Cur
405,000 N
nG
1,410 1/min
nϑr
850 1/min
≈m
170.5 kg

22264-BEA-XL-MB1 bearing

Product Related

The 22264-BEA-XL-MB1 is a high-performance spherical roller bearing designed to handle incredibly heavy radial and axial loads in both directions. As part of the X-life series, it features an optimized internal geometry that significantly reduces friction and heat generation, which directly translates to a longer service life and higher limiting speeds compared to standard alternatives. The "MB1" designation indicates a robust, two-piece brass cage guided by the inner ring, providing exceptional stability and vibration resistance in harsh operating environments like mining, paper mills, or heavy industrial gearboxes.

bearing type

transportation

We provide sea and air freight services for large bearings, and international express shipping services for small bearings.
