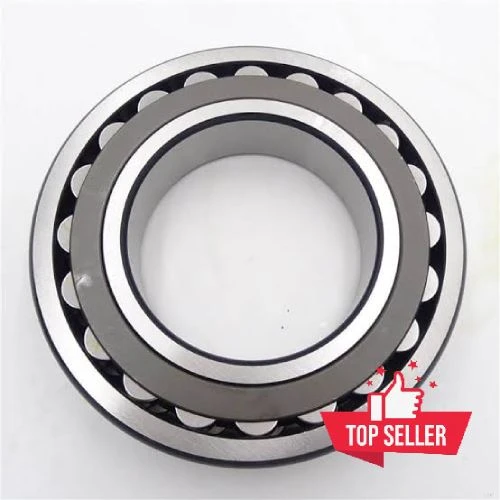

23240 CCK/C3W33
weight:54.4 kg
Spherical roller bearing
A one-year warranty is provided under normal operating conditions.
WhatsApp:+8618753115023
E-mial:info@bearingmotion.com
Products Description
| Bore diameter | 200 mm |
| Outside diameter | 360 mm |
| Width | 128 mm |
| Basic dynamic load rating | 1 947 kN |
| Basic static load rating | 2 700 kN |
| Reference speed | 1 200 r/min |
| Limiting speed | 1 700 r/min |
| Product net weight | 54.4 kg |
Product Related
Designed for severe radial and bi-directional axial loads, the 23240 CCK/C3W33 features a 200 mm 1:12 tapered bore for mounting on adapter sleeves or tapered journal seats. Its CC design utilizes two stamped steel cages and a flangeless inner ring to handle shaft deflection without stress concentration. Factory-rated with C3 internal clearance, it accommodates thermal expansion during continuous operation, while the W33 outer-ring groove and 3 oil holes simplify re-lubrication. Ideal for vibrating screens, crushers, paper mills, and industrial gearboxes.
transportation
We provide sea and air freight services for large bearings, and international express shipping services for small bearings.
