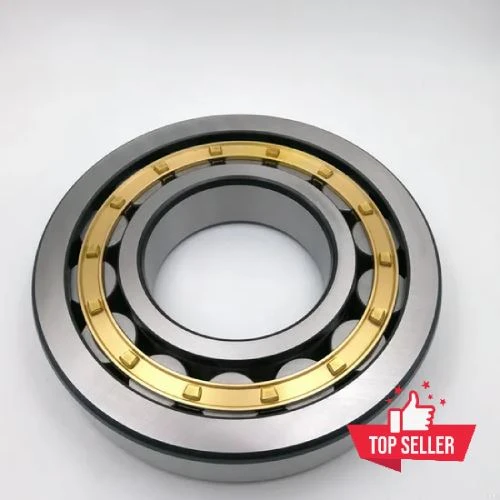

NU 2218 ECM

size:90*160*40mm
weight:3.68 kg
Single row cylindrical roller bearing
A one-year warranty is provided under normal operating conditions.
WhatsApp:+8618753115023
E-mial:info@bearingmotion.com

Send Inquiry

Chat Now

Product Introduction

Bore diameter	90 mm
Outside diameter	160 mm
Width	40 mm
Basic dynamic load rating	280 kN
Basic static load rating	315 kN
Reference speed	4 500 r/min
Limiting speed	5 000 r/min
Product net weight	3.68 kg

NU 2218 ECM bearing

Finding a reliable option for high-speed equipment with heavy radial loads usually leads engineers straight to the NU 2218 ECM single row cylindrical roller bearing. It features two fixed flanges on the outer ring and a completely flangeless inner ring, meaning the NU 2218 ECM allows the shaft to slide axially in both directions to safely absorb thermal expansion. What really makes this specific variant durable is its heavy-duty machined brass cage. This cage keeps operating temperatures low and keeps the NU 2218 ECM running smoothly under intense vibrations, while the fully separable design cuts down the time needed for mounting and routine inspections.
