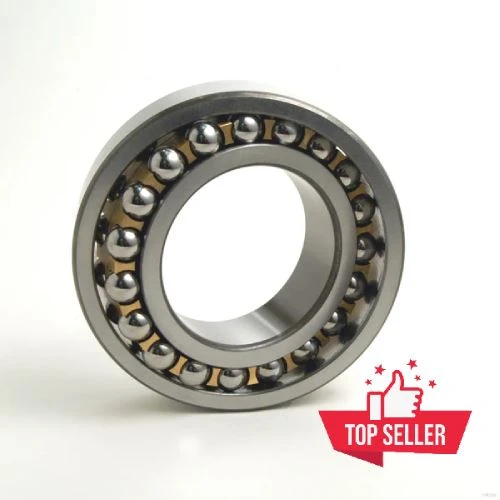

1228-M

When dealing with inevitable shaft deflections or mounting misalignments in heavy machinery, the 1228-M self-aligning ball bearing serves as a highly reliable solution thanks to its uniquely forgiving internal geometry. Built with a 140mm cylindrical bore, a 250mm outer diameter, and a 50mm width, the 1228-M utilizes a double-row design that shares a single continuous spherical raceway in the outer ring, allowing the inner assembly to pivot freely and automatically adjust to sudden angular shifts without binding. You'll also notice the distinct "M" suffix on the 1228-M, which indicates the inclusion of a solid, ball-guided machined brass cage rather than a basic stamped steel component. This heavier-duty cage upgrade means the 1228-M easily sustains continuous high-speed rotation-rated up to 3,900 rpm-while simultaneously supporting massive dynamic radial loads of up to 163 kN. Because the rolling elements rely on strict point contact, the entire unit naturally generates very little friction, keeping operating temperatures down and extending maintenance intervals even when shaft alignment is less than perfect.

We provide sea and air freight services for large bearings, and international express shipping services for small bearings.
