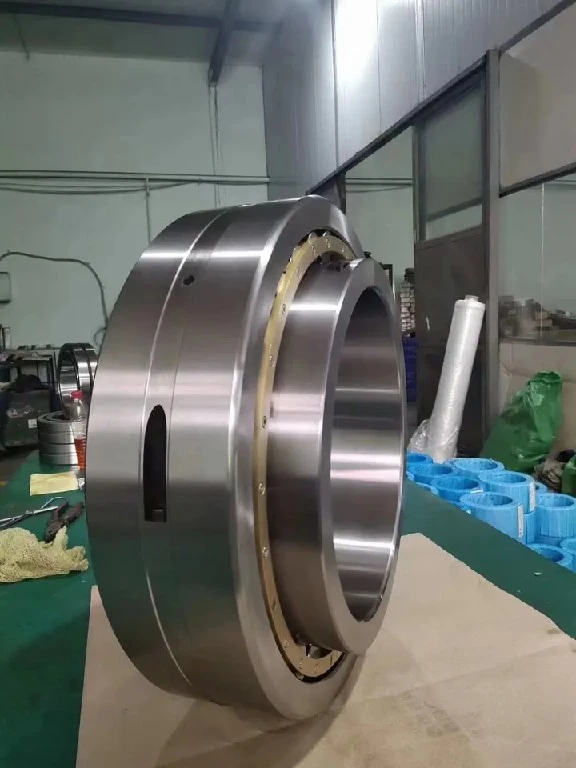

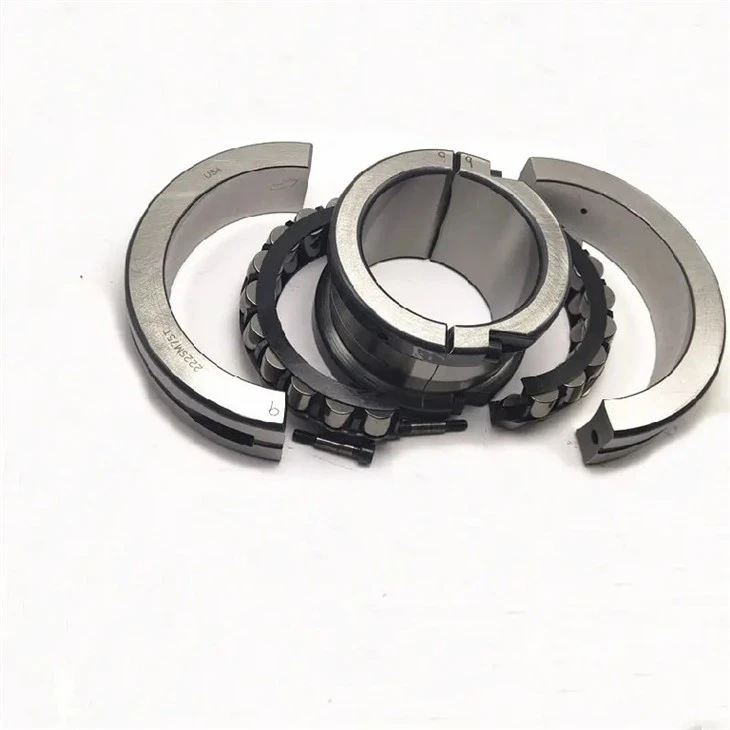

01B65M Splite Bearing
video

01B65M Splite Bearing

Type:Single Row Split Cylindrical Roller Bearing
Size: 114.3*55.7*27 mm
Weight: 1.8 kg
Number of Row: Single row
Situation: In stock
Leading time: 3-6 working days
Contact: info@bearingmotion.com
Send Inquiry
Chat Now
Product Introduction

product-1025-398



01EB65M

Cylindrical Roller Bearing

Inner Race Profile

Wide Inner Ring

Outer Race Profile

Cylindrical

Mounting Method

Clamp Collar

Inch - Metric

Metric

Category

Insert Bearings

Weight / Kilogram

1.8 KG

Bore

114.3 Millimeter

Outside Diameter

55.7 Millimeter

Length Thru Bore

27 Millimeter

Limiting speed

3940 r/min

Load ratings dynamic C

135 KN

Load ratings static C0

157 KN

Load ratings axia Ca

7.2 KN

Cartridge for labyrinth seals

01C3

Cartridge

3.2

Axial Float

4.5mm



product-800-332



Application:



01EB65M separated bearing

Used in metallurgy, coal, electric power, shipbuilding, cement, papermaking, chemical industry, sugar, water treatment conveying bucket wheel

Machine, port machine, ball mill and other industries and fields. Features and characteristics: Installation does not need to move peripheral equipment or machine installation cost low replacement convenient reduce downtime improve maintenance efficiency, low requirements for shaft processing, shaft does not need chamfting step does not need to be hardened shaft processing cost low excellent seals, bearing box and bearing seat can rotate 360 degrees in any direction keep the seal parallel to the shaft, concentric clearance minimum, A wide range of standard ring seals bearing housing the standard range of bearing housing meets most applications Bearing housing available in steel, gray iron, ductile iron distribution plates, tie rod type, coil type and custom bearings with complete service manufacturers proven products extensive engineering knowledge professional problem solving technical and installation support services Product interchangeability: Most seat bearings and plain bearings are interchangeable.



Warehouse show:




product-1200-1200



Clients comments:



product-800-347

product-800-344



Shipment:






Advantage :

1) Meticulous and considerate service - Our service team provides meticulous and considerate service, so that customers feel considerate care.

2) Technical Support - Our sales staff not only have the professional knowledge, but also can provide effective technical support.

3) Flexible payment method - We can accept T/T PayPal via bank transfer L/C ect.

4) Short lead time - We have high production capacity and can produce and deliver a large number of orders in a short time



Hot Tags: 01b65m splite bearing, 01b65m splite bearing suppliers, 01EB330M Bearing, Bearings 01B105M, Cooper 01B115M Bearing, Split Roller Bearings 01EB170M, 01B65M Splite Bearing, 01B90M 90x152 4x70 64mm Bearing
