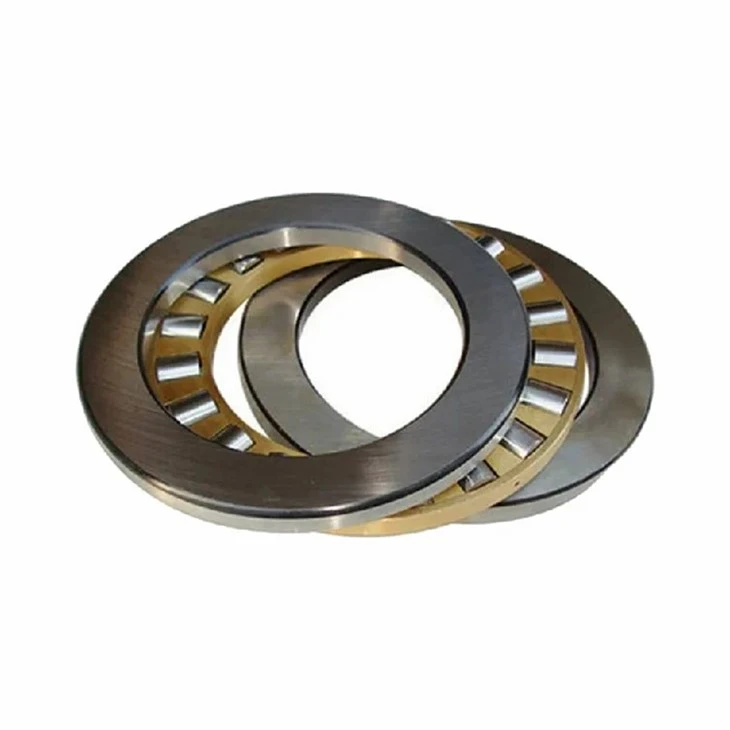

Thrust Cylindrical Roller Bearings
Thrust Cylindrical Roller Bearing -1
Thrust Cylindrical Roller Bearing
ThrustRoller Bearings
Thrust Cylindrical Roller Bearings

Thrust Cylindrical Roller Bearings

Type: Thrust Cylindrical Roller Bearings
Size:None
Weight: None
Number of Row: Single row
Situation: In stock
Leading time: 3-6 working days
Contact: info@bearingmotion.com

Send Inquiry

Chat Now

Product Introduction

Designation	Principal dimensions				Basic load ratings		Speed ratings
					dynamic	static	Reference speed	Limng speed
	d [mm]	D[mm]	H[mm]	Dw[mm]	C [kN]	Co [kN]	[r/min]	[r/hmin]
☆ 81102 TN	15	28	9		11.2	27	4300	8500
K 81102 TN	15	28		3.5	11.2	27	4300	8500
☆ 81103 TN	17	30	9		12.2	31.5	4300	8500
K81103 TN	17	30		3.5	12.2	31.5	4300	8500
☆ 81104TN	20	35	10		18.6	48	3800	7500
K81104TN	20	35		4.5	18.6	48	3800	7500
☆ 81105 TN	25	42	11		25	69.5	3200	6300
K81105 TN	25	42		5	25	69.5	3200	6300
☆ 81106 TN	30	47	11		27	78	3000	6000
☆ 81206TN	30	52	16		50	134	2400	4800
89306 TN	30	60	18		52	183	2600	5300
K81106TN	30	47		5	27	78	3000	6000
K81206 TN	30	52		7.5	50	134	2400	4800
K89306 TN	30	60		5.5	52	183	2600	5300
☆ 81107TN	35	52	12		29	93	2800	5600
☆ 81207TN	35	62	18		62	190	2000	4000
K81107 TN	35	52		5	29	93	2800	5600
K81207 TN	35	62		7.5	62	190	2000	4000
K89307TN	35	68		6	62	220	2400	4800
☆ 81108TN	40	60	13		43	137	2400	5000
☆ 81208 TN	40	68	19		83	255	1900	3800
89308TN	40	78	22		95	365	2000	4000
K81108 TN	40	60		6	43	137	2400	5000
K81208 TN	40	68		9	83	255	1900	3.800
☆ 81109TN	45	65	14		45	153	2200	4500
☆ 81209 TN	45	73	20		83	255	1800	3600
89309TN	45	85	24		108	425	1800	3600
K81109 TN	45	65		6	45	153	2200	4500
K81209 TN	45	73		9	83	255	1800	3600
K89309 TN	45	85		7.5	108	425	1800	3600

Introduction:

Thrust cylindrical roller bearings and thrust tapered roller bearings can be suitable for low speed occasions, thrust tapered roller bearings speed is slightly higher than thrust cylindrical roller bearings. Thrust cylindrical roller bearings are separated bearings, which can only withstand one-way axial load and slight impact, and can limit the axial displacement of the shaft (or housing) in one direction, so it can be used as one-way axial positioning. But its bearing capacity development is far greater than that of thrust ball bearing. When the roller rolls, the development of the roller on the raceway of the ring inevitably produces sliding, therefore, the limit speed of this kind of bearing is lower than that of the thrust ball bearing, which is usually only suitable for low speed occasions.

The thrust cylindrical roller through the bearing system can be mainly used in the treatment of heavy machine tool, high power Marine gear box, petroleum engineering drill, vertical motor and other machinery.
