HGL25HA Long Linear Block
Size:36*48*78.6 mm
Weight: 0.57 kg
Situation: in stock
Leading time: 3-6 working days
Contact: info@bearingmotion.com
|
Model No. |
Dimensions of Assenmbly[mm] |
Dimensions of Block[mm] |
Dimensions of Rail[mm] |
Weight |
||||||||||||||||||||||
|
Block |
Rail |
|||||||||||||||||||||||||
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
G |
T |
H2 |
H3 |
WR |
HR |
D |
h |
d |
P |
E |
|||||||
|
HGL15CA |
24 |
4.3 |
9.5 |
34 |
26 |
4 |
26 |
39.4 |
61.4 |
5.3 |
6 |
3.95 |
3.7 |
15 |
15 |
7.5 |
5.3 |
4.5 |
60 |
20 |
0.14 |
1.45 |
||||
|
HGL25CA |
36 |
5.5 |
12.5 |
48 |
35 |
6.5 |
35 |
58 |
84 |
12 |
8 |
6 |
5 |
23 |
22 |
11 |
9 |
7 |
60 |
20 |
0.42 |
3.21 |
||||
|
HGL25HA |
50 |
78.6 |
104.6 |
0.57 |
||||||||||||||||||||||
|
HGL30CA |
42 |
6 |
16 |
60 |
40 |
10 |
40 |
70 |
97.4 |
12 |
8.5 |
6.5 |
10.8 |
28 |
26 |
14 |
12 |
9 |
80 |
20 |
0.78 |
4.47 |
||||
|
HGL30HA |
60 |
93 |
120.4 |
1.03 |
||||||||||||||||||||||
|
HGL35CA |
48 |
7.5 |
18 |
70 |
50 |
10 |
50 |
80 |
112.4 |
12 |
10.2 |
9 |
12.6 |
34 |
29 |
14 |
12 |
9 |
80 |
20 |
1.14 |
6.30 |
||||
|
HGL35HA |
72 |
105.8 |
138.2 |
1.52 |
||||||||||||||||||||||
|
HGL45CA |
60 |
9.5 |
20.5 |
86 |
60 |
13 |
60 |
97 |
139.4 |
12.9 |
16 |
8.5 |
20.5 |
45 |
38 |
20 |
17 |
14 |
105 |
22.5 |
2.08 |
10.41 |
||||
|
HGL45HA |
80 |
128.8 |
171.2 |
2.75 |
||||||||||||||||||||||
|
HGL55CA |
70 |
13 |
23.5 |
100 |
75 |
12.5 |
75 |
117.7 |
166.7 |
12.9 |
17.5 |
12 |
19 |
53 |
44 |
23 |
20 |
16 |
120 |
30 |
3.25 |
15.08 |
||||
|
HGL55HA |
95 |
155.8 |
204.8 |
4.27 |
||||||||||||||||||||||
Introduction:
The main functions of Linear Slide Bearing HGH15CA are guidance and support. It will carry a moving part, the load. The load moves in a certain direction. The motion is relatively repetitive, over and over again. During the movement, the load on the guide rail will create a lot of friction, but after the ball design and application, the friction between the two will be greatly reduced.
In the manufacturing process, Linear Slide Bearing HGH15CA is mainly composed of several parts. Its products will be composed of sliding blocks, steel balls, cages, end caps, dust caps, oil nozzles, and many other parts.
The working principle of linear guide slide block:
Linear Slide Bearing HGH15CA can be understood as a rolling guide. Through the infinite rolling cycle between the slider and the guide, the load platform is easy to move along the guide rail with high precision, and the friction coefficient is reduced to one-fiftieth of the traditional sliding guide, which can easily achieve high positioning accuracy. The unit design between the slide block and the guide rail enables the linear guide rail to bear the load of up, down, left, right and other directions at the same time. The patented reflux system and simplified structural design enable the linear guide to have a flatter and lower noise movement.
Physical display

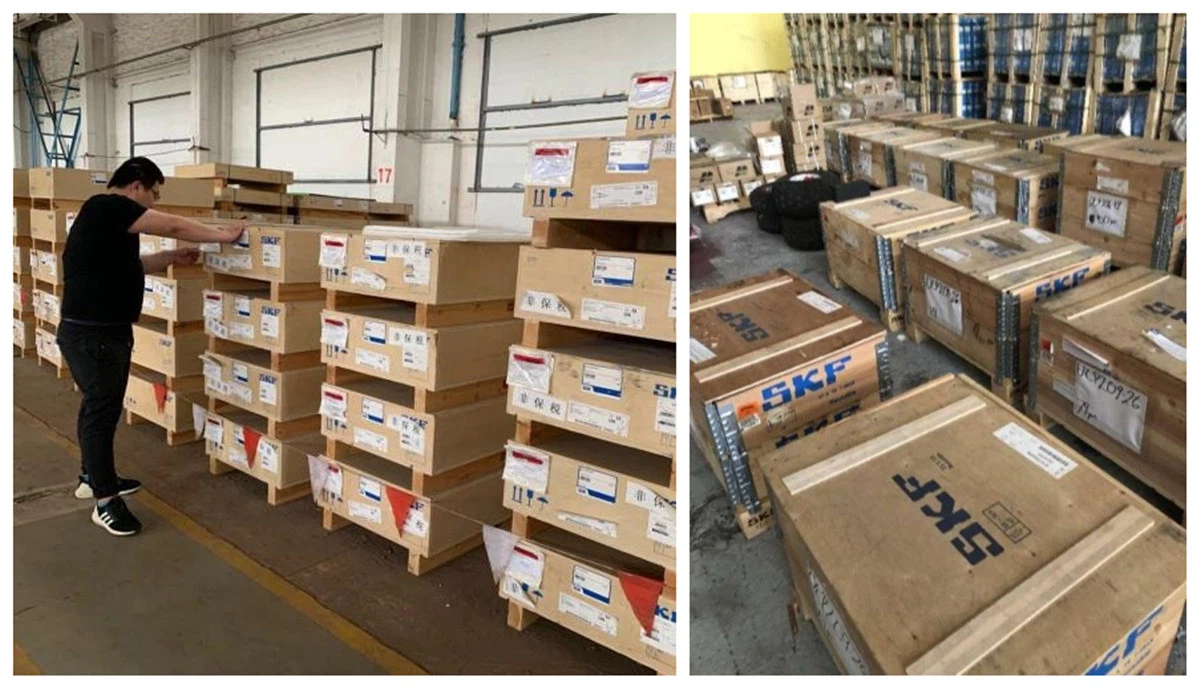

Warehouse show:
